| Indoor Model | |
| Refrigerant type | R454B |
| System type | Single Zone |
| BTU rated | 12,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 3.17 |
| Voltage range (V) | 187-253 |
| Controller | remote controller |
| Refrigerant piping - liquid/gas side (inch) | 1/4"/3/8" |
| EER2 | 10.8 |
| SEER2 | 21.3 |
| Net/gross weight (lb) | 19.40/25.13 |
| Unit dimensions (WxDxH) | 31.57 x 7.44 x 11.69 |
| Packing dimensions (WxDxH) | 34.45 x 11.22 x 14.96 |
| Operation range - heating | 32~86 |
| Operation range - cooling | 60~90 |
| Minimum circuit ampacity (A) | 3 |
| Max fuse (A) | 15 |
| Indoor noise level (H/M/L) | 38/32/22.5 |
| Indoor air flow | 359 / 306.1 / 206 / 144.2 |
| ESP range | / |
| Drainage pipe diameter (inch) | 5/8" |
| Outdoor Model | |
| Refrigerant type | R454B |
| BTU rated | 12,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 3.17 |
| Max. pipe length (ft) | 82 |
| Voltage range (V) | 187-253 |
| Refrigerant piping - liquid/gas side (inch) | 1/4"/3/8" |
| HSPF2-5 | 7 |
| HSPF2-4 | 9.1 |
| Cooling capacity (Min/Max) (BTU/h) | 12,000 (1,700~13,300) |
| Net/gross weight (lb) | 59.08/64.37 |
| Unit dimensions (WxDxH) | 30.12 x 11.93 x 21.85 |
| Packing dimensions (WxDxH) | 34.84 x 14.76 x 23.82 |
| Refrigerant precharge | 25 |
| Outdoor noise level | 54 |
| Outdoor air flow | 1,235.3 |
| Minimum circuit ampacity (A) | 13 |
| Max fuse (A) | 15 |
| Max height difference between indoor and outdoor unit | 49.2 |
| Heating capacity (Min/Max) (Btu/h) | 12,000 (3,500~13,400) |
| COP | 3.18 |
| Ambient temperature - Heating (F) | 5 ~ 75 |
| Ambient temperature - Cooling (F) | 5 ~ 122 |
| Additional Refrigerant Charge 3/8 liquid line | / |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Overview
The Cooper&Hunter 12,000 Btu 230V MIA Wall Mounted Unit utilizing the new R454B refrigerant is designed as a one-to-one, single-zone HVAC solution for smaller rooms and compact spaces. With its sleek matte finish, it blends seamlessly into modern interiors while delivering strong and reliable comfort performance.
Equipped with advanced inverter technology and up to 21.3 SEER2 efficiency, the MIA unit adapts to changing cooling and heating demands for optimized energy savings. Built with superior TU1 copper tubing for durability and efficient heat transfer, it ensures long-lasting performance and consistent indoor comfort.
Additional smart features such as Turbo Function, Silent Operation, Auto Swing louvers, and Follow Me technology provide enhanced comfort control. The unit also supports Smart Kit connectivity for app-based remote control, LED display visibility, and multiple fan speeds for customized airflow. A self-cleaning function helps maintain hygiene and efficiency over time.
Features
- 12,000 Btu/h single-zone wall mounted system
- Energy-efficient inverter technology with up to 21.3 SEER2 rating
- R454B refrigerant for improved environmental performance
- Turbo Function for rapid cooling and heating response
- Silent Function for quiet indoor operation
- Auto Swing horizontal louvers for even air distribution
- Follow Me Function for personalized temperature control
- Smart Kit ready with app-based remote control
- LED display for clear system status and settings
- Multiple fan speeds and Comfortable Sleep Mode
- Self-cleaning function for improved hygiene and maintenance
- TU1 copper tubing for durability and efficient heat transfer
- Suitable for small to medium residential spaces

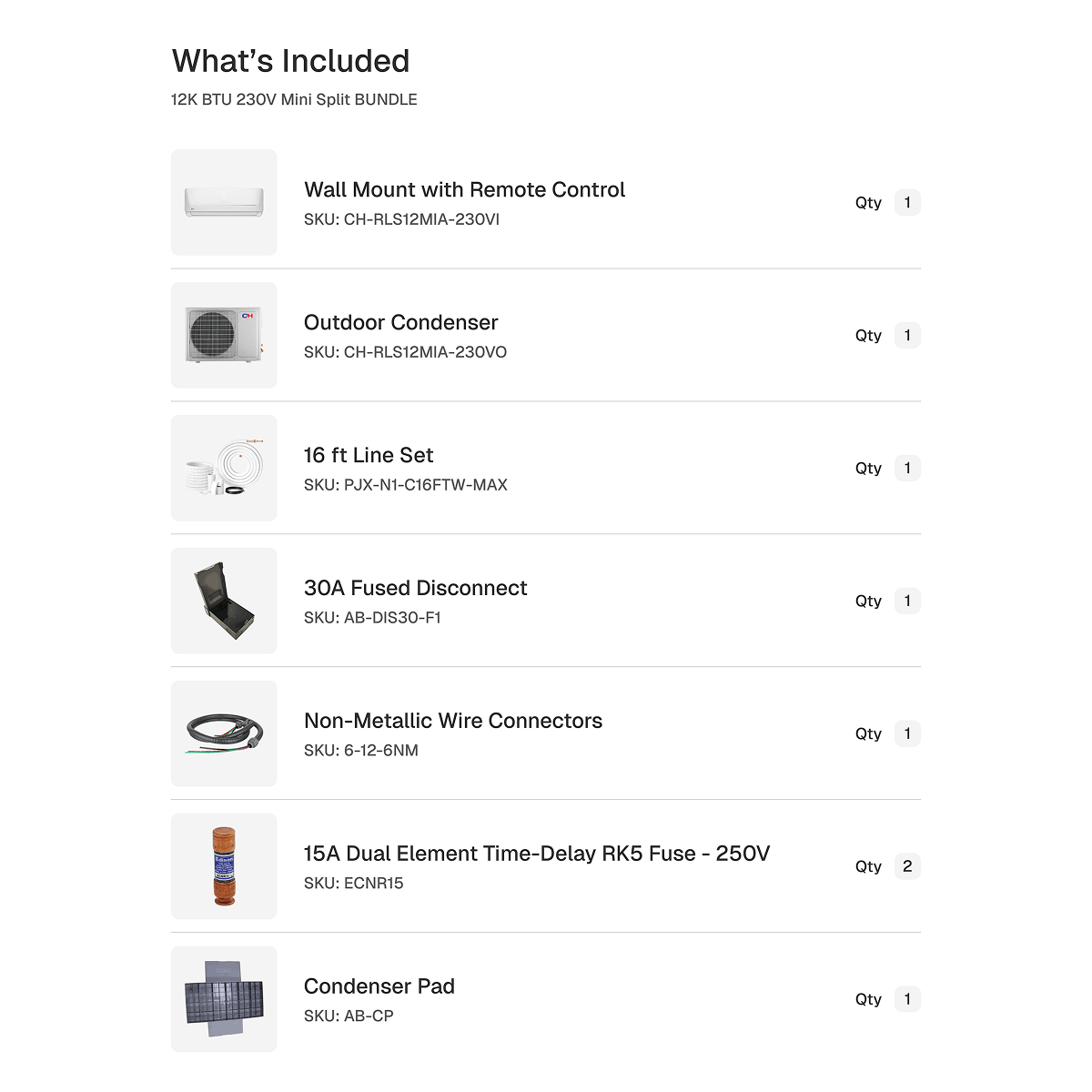

What’s Included
- Wall Mount with Remote Control
- Outdoor Condenser
- 16 ft Line Set
- 30A Fused Disconnected
- Non-Metallic Wire Connectors
- 15A Dual Element Time-Delay RK5 Fuse - 250V (Qty 2)
- Condenser Pad
Specifications
| Indoor Model | |
| Refrigerant type | R454B |
| System type | Single Zone |
| BTU rated | 12,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 3.17 |
| Voltage range (V) | 187-253 |
| Controller | remote controller |
| Refrigerant piping - liquid/gas side (inch) | 1/4"/3/8" |
| EER2 | 10.8 |
| SEER2 | 21.3 |
| Net/gross weight (lb) | 19.40/25.13 |
| Unit dimensions (WxDxH) | 31.57 x 7.44 x 11.69 |
| Packing dimensions (WxDxH) | 34.45 x 11.22 x 14.96 |
| Operation range - heating | 32~86 |
| Operation range - cooling | 60~90 |
| Minimum circuit ampacity (A) | 3 |
| Max fuse (A) | 15 |
| Indoor noise level (H/M/L) | 38/32/22.5 |
| Indoor air flow | 359 / 306.1 / 206 / 144.2 |
| ESP range | / |
| Drainage pipe diameter (inch) | 5/8" |
| Outdoor Model | |
| Refrigerant type | R454B |
| BTU rated | 12,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 3.17 |
| Max. pipe length (ft) | 82 |
| Voltage range (V) | 187-253 |
| Refrigerant piping - liquid/gas side (inch) | 1/4"/3/8" |
| HSPF2-5 | 7 |
| HSPF2-4 | 9.1 |
| Cooling capacity (Min/Max) (BTU/h) | 12,000 (1,700~13,300) |
| Net/gross weight (lb) | 59.08/64.37 |
| Unit dimensions (WxDxH) | 30.12 x 11.93 x 21.85 |
| Packing dimensions (WxDxH) | 34.84 x 14.76 x 23.82 |
| Refrigerant precharge | 25 |
| Outdoor noise level | 54 |
| Outdoor air flow | 1,235.3 |
| Minimum circuit ampacity (A) | 13 |
| Max fuse (A) | 15 |
| Max height difference between indoor and outdoor unit | 49.2 |
| Heating capacity (Min/Max) (Btu/h) | 12,000 (3,500~13,400) |
| COP | 3.18 |
| Ambient temperature - Heating (F) | 5 ~ 75 |
| Ambient temperature - Cooling (F) | 5 ~ 122 |
| Additional Refrigerant Charge 3/8 liquid line | / |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Details
Overview
The Cooper&Hunter 12,000 Btu 230V MIA Wall Mounted Unit utilizing the new R454B refrigerant is designed as a one-to-one, single-zone HVAC solution for smaller rooms and compact spaces. With its sleek matte finish, it blends seamlessly into modern interiors while delivering strong and reliable comfort performance.
Equipped with advanced inverter technology and up to 21.3 SEER2 efficiency, the MIA unit adapts to changing cooling and heating demands for optimized energy savings. Built with superior TU1 copper tubing for durability and efficient heat transfer, it ensures long-lasting performance and consistent indoor comfort.
Additional smart features such as Turbo Function, Silent Operation, Auto Swing louvers, and Follow Me technology provide enhanced comfort control. The unit also supports Smart Kit connectivity for app-based remote control, LED display visibility, and multiple fan speeds for customized airflow. A self-cleaning function helps maintain hygiene and efficiency over time.
Features
- 12,000 Btu/h single-zone wall mounted system
- Energy-efficient inverter technology with up to 21.3 SEER2 rating
- R454B refrigerant for improved environmental performance
- Turbo Function for rapid cooling and heating response
- Silent Function for quiet indoor operation
- Auto Swing horizontal louvers for even air distribution
- Follow Me Function for personalized temperature control
- Smart Kit ready with app-based remote control
- LED display for clear system status and settings
- Multiple fan speeds and Comfortable Sleep Mode
- Self-cleaning function for improved hygiene and maintenance
- TU1 copper tubing for durability and efficient heat transfer
- Suitable for small to medium residential spaces
What’s Included
- Wall Mount with Remote Control
- Outdoor Condenser
- 16 ft Line Set
- 30A Fused Disconnected
- Non-Metallic Wire Connectors
- 15A Dual Element Time-Delay RK5 Fuse - 250V (Qty 2)
- Condenser Pad
