| Indoor unit | AB-MP36AHU-230VI |
| Refrigerant type | R32 |
| System type | Single |
| BTU rated | 36,000 |
| Power source | 208-230, 1PH, 60HZ |
| Dehumidification value (pnt/day) | 3.97 |
| Voltage range (V) | 187-253 |
| Controller | 485 OR 24V |
| Refrigerant piping - liquid/gas side (inch) | 3/8" 3/4" |
| EER2 | 10.4 |
| SEER2 | 17.0 |
| Net/gross weight (lb) | 137/151 |
| Unit dimensions (WxDxH) | 21-1/32×21-1/32×49-7/32 |
| Packing dimensions (WxDxH) | 24-13/32×26-37/64×50-13/64 |
| Operation range - heating | 60~90 |
| Operation range - cooling | 60~90 |
| Minimum circuit ampacity (A) | 5 |
| Max fuse (A) | 6 |
| Indoor noise level (H/M/L) | 48/39 |
| Indoor air flow | 1241/901 |
| ESP range | 0-0.8 In.W.G |
| Drainage pipe diameter (inch) | 3/4" |
| Outdoor unit | AB-SD36HI-230VO |
| Refrigerant type | R32 |
| BTU Rated | 36,000 |
| Power source | 208-230, 1PH, 60HZ |
| Dehumidification value (pnt/day) | 3.97 |
| Max. pipe length (ft) | 246 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 42-1/8×34-41/64×20-43/64 |
| Refrigerant piping Liquid/Gas side (inch) | 3/8" 3/4" |
| HSPF2-5 | 6.8 |
| HSPF2-4 | 8.4 |
| EER2 | 10.4 |
| Cooling capacity (Min/Max) (BTU/h) | 36,000 (8,300~38,900) |
| SEER2 | 17 |
| Unit Net/Gross weight | 132/140 |
| Unit dimensions (W*H*D) | 37-63/64×31-57/64×15-3/4 |
| Refrigerant precharge | 24.6 |
| Outdoor Noise Level | 56 |
| Outdoor Air Flow | 2,650 |
| Minimum circuit ampacity | 25 |
| Max.fuse | 30 |
| Max height difference between Indoor and Outdoor unit | 98.4 |
| Heating capacity (Min/Max) (Btu/h) | 36,000 (6,700~41,300) |
| COP | 3.45 |
| Ambient temperature - Heating (F) | -4~86 |
| Ambient temperature - Cooling (F) | 23~125 |
| Additional Refrigerant Charge 3/8 liquid line | 0.52 oz/ft |
Overview
Armbridge 36,000 Btu Multi-Position Air Handler is designed to provide efficient air distribution and reliable comfort for residential HVAC applications. Featuring a high-performance A-coil, this unit improves heat-transfer efficiency while maintaining low static-pressure drop for optimized airflow and system performance.
Designed with installation flexibility in mind, the unit supports 4-position installation configurations, allowing it to adapt to a variety of space requirements and system layouts. Its compact and versatile design makes it an ideal solution for modern residential heating and cooling applications.
Equipped with an R32 refrigerant sensor for enhanced safety and system monitoring, the unit delivers dependable operation while meeting modern HVAC standards. Certified by AHRI and ETL, it provides reliable performance and quality assurance.
The Armbridge indoor unit is compatible with standard 24V thermostats and a range of third-party HVAC systems, offering flexible control options and easy integration into new or existing installations.
Features
- 36,000 Btu multi-position air handler for residential applications
- High-performance A-coil designed for efficient heat transfer
- Low static-pressure drop for improved airflow performance
- Supports 4-position installation configurations
- R32 refrigerant sensor for enhanced system safety
- Compatible with standard 24V thermostats
- Works with a variety of third-party HVAC systems
- AHRI and ETL certified for reliable performance
- Designed for flexible installation and long-term operation

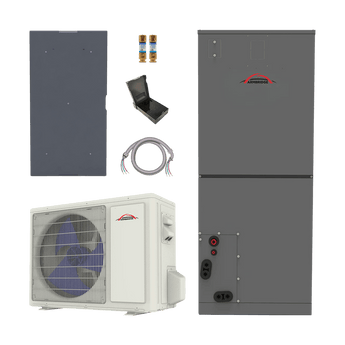

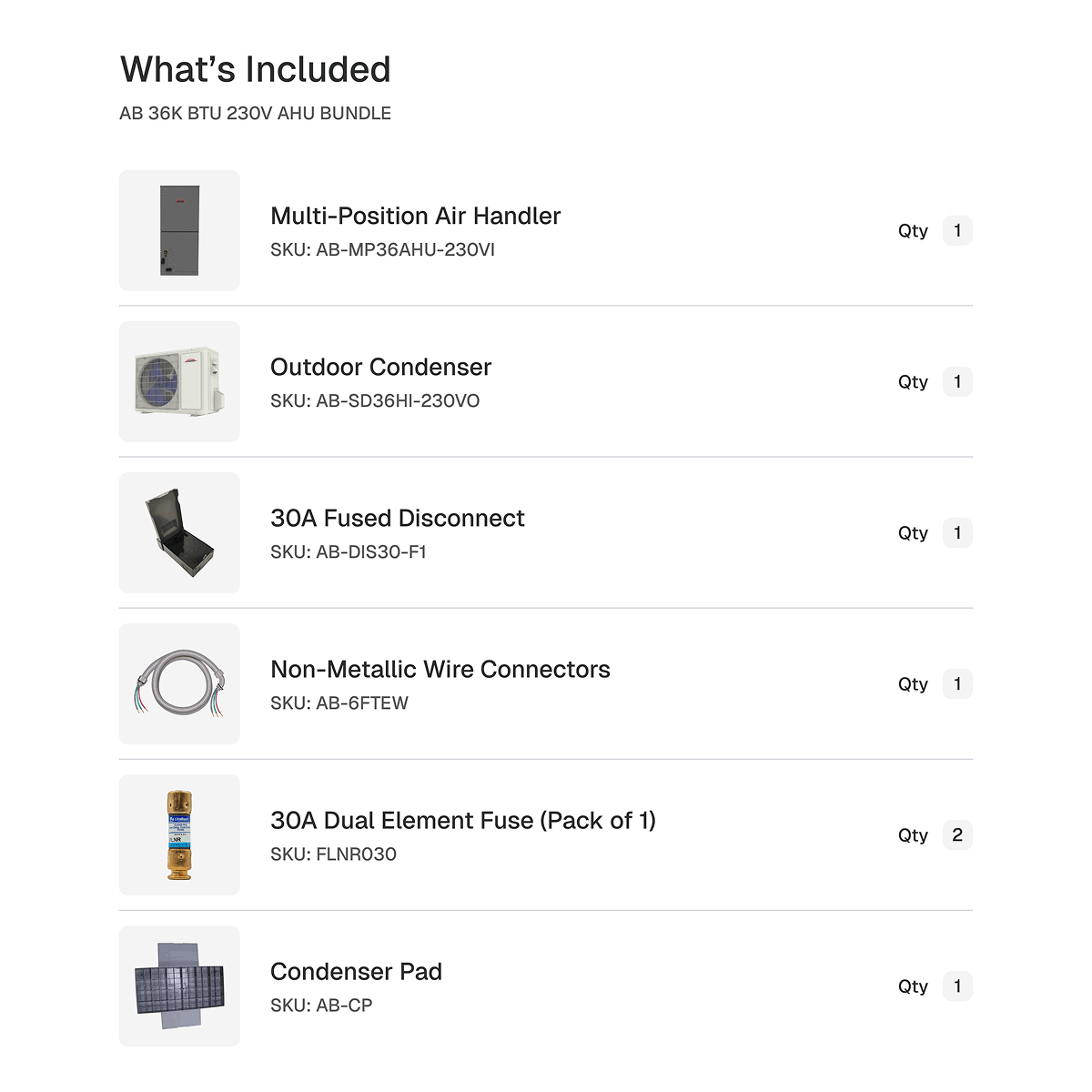

What’s Included
- 36K Multi-Position Air Handler
- Outdoor Condenser
- 30A Fused Disconnected
- Non-Metallic A/C Whip
- 30A Dual Element Fuse (Pack of 1) - Qty 2
- Condenser Pad
Specifications
| Indoor unit | AB-MP36AHU-230VI |
| Refrigerant type | R32 |
| System type | Single |
| BTU rated | 36,000 |
| Power source | 208-230, 1PH, 60HZ |
| Dehumidification value (pnt/day) | 3.97 |
| Voltage range (V) | 187-253 |
| Controller | 485 OR 24V |
| Refrigerant piping - liquid/gas side (inch) | 3/8" 3/4" |
| EER2 | 10.4 |
| SEER2 | 17.0 |
| Net/gross weight (lb) | 137/151 |
| Unit dimensions (WxDxH) | 21-1/32×21-1/32×49-7/32 |
| Packing dimensions (WxDxH) | 24-13/32×26-37/64×50-13/64 |
| Operation range - heating | 60~90 |
| Operation range - cooling | 60~90 |
| Minimum circuit ampacity (A) | 5 |
| Max fuse (A) | 6 |
| Indoor noise level (H/M/L) | 48/39 |
| Indoor air flow | 1241/901 |
| ESP range | 0-0.8 In.W.G |
| Drainage pipe diameter (inch) | 3/4" |
| Outdoor unit | AB-SD36HI-230VO |
| Refrigerant type | R32 |
| BTU Rated | 36,000 |
| Power source | 208-230, 1PH, 60HZ |
| Dehumidification value (pnt/day) | 3.97 |
| Max. pipe length (ft) | 246 |
| Voltage range (V) | 187-253 |
| Packing dimensions (WxDxH) | 42-1/8×34-41/64×20-43/64 |
| Refrigerant piping Liquid/Gas side (inch) | 3/8" 3/4" |
| HSPF2-5 | 6.8 |
| HSPF2-4 | 8.4 |
| EER2 | 10.4 |
| Cooling capacity (Min/Max) (BTU/h) | 36,000 (8,300~38,900) |
| SEER2 | 17 |
| Unit Net/Gross weight | 132/140 |
| Unit dimensions (W*H*D) | 37-63/64×31-57/64×15-3/4 |
| Refrigerant precharge | 24.6 |
| Outdoor Noise Level | 56 |
| Outdoor Air Flow | 2,650 |
| Minimum circuit ampacity | 25 |
| Max.fuse | 30 |
| Max height difference between Indoor and Outdoor unit | 98.4 |
| Heating capacity (Min/Max) (Btu/h) | 36,000 (6,700~41,300) |
| COP | 3.45 |
| Ambient temperature - Heating (F) | -4~86 |
| Ambient temperature - Cooling (F) | 23~125 |
| Additional Refrigerant Charge 3/8 liquid line | 0.52 oz/ft |
Details
Overview
Armbridge 36,000 Btu Multi-Position Air Handler is designed to provide efficient air distribution and reliable comfort for residential HVAC applications. Featuring a high-performance A-coil, this unit improves heat-transfer efficiency while maintaining low static-pressure drop for optimized airflow and system performance.
Designed with installation flexibility in mind, the unit supports 4-position installation configurations, allowing it to adapt to a variety of space requirements and system layouts. Its compact and versatile design makes it an ideal solution for modern residential heating and cooling applications.
Equipped with an R32 refrigerant sensor for enhanced safety and system monitoring, the unit delivers dependable operation while meeting modern HVAC standards. Certified by AHRI and ETL, it provides reliable performance and quality assurance.
The Armbridge indoor unit is compatible with standard 24V thermostats and a range of third-party HVAC systems, offering flexible control options and easy integration into new or existing installations.
Features
- 36,000 Btu multi-position air handler for residential applications
- High-performance A-coil designed for efficient heat transfer
- Low static-pressure drop for improved airflow performance
- Supports 4-position installation configurations
- R32 refrigerant sensor for enhanced system safety
- Compatible with standard 24V thermostats
- Works with a variety of third-party HVAC systems
- AHRI and ETL certified for reliable performance
- Designed for flexible installation and long-term operation

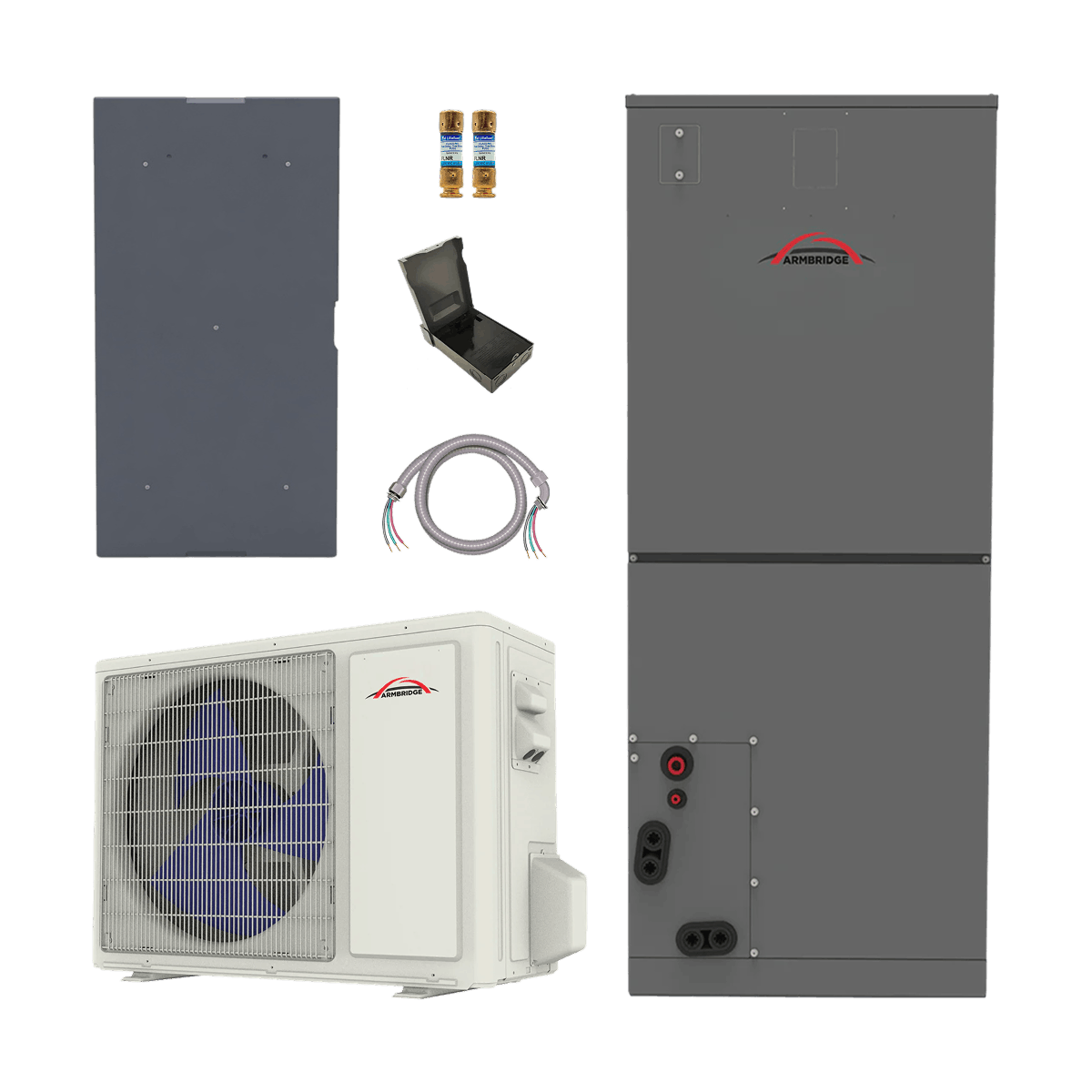

What’s Included
- 36K Multi-Position Air Handler
- Outdoor Condenser
- 30A Fused Disconnected
- Non-Metallic A/C Whip
- 30A Dual Element Fuse (Pack of 1) - Qty 2
- Condenser Pad
