| Refrigerant type | R32 |
| System type | Multi-zone unit |
| BTU rated | 18,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Voltage range (V) | 165-264 |
| Refrigerant piping - liquid/gas side (inch) | 2x1/4"- 2x3/8" |
| EER2 | 12.3/11.8/12.05 |
| SEER2 | 22/19.5/20.75 |
| Net/gross weight (lb) | 75.0/80.5 |
| Unit dimensions (WxDxH) | 34.65×13.90×21.93 |
| Packing dimensions (WxDxH) | 35.55×15.04×24.21 |
| Operation range - heating | -13~75°F |
| Operation range - cooling | -13~125°F |
| Minimum circuit ampacity (A) | 15 |
| Max fuse (A) | 20 |
| Refrigerant precharge (ft) | Average 24.6 |
| Outdoor noise level (dB) | 54 dB |
| Outdoor air flow (CFM) | 1,529 CFM |
| Max height difference between Indoor and Outdoor unit | 49 ft |
| HSPF2-5 | 8/7/7.5 |
| HSPF2-4 | 10/9.5/9.75 |
| Heating capacity (Min/Max) (Btu/h) | 18,000 (4,200-22,000) |
| COP | 3.8/3.9/3.85 |
| Cooling capacity (Min/Max) (BTU/h) | 17,700 (3,800-19,800) |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Overview

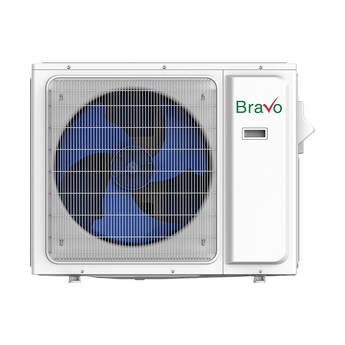

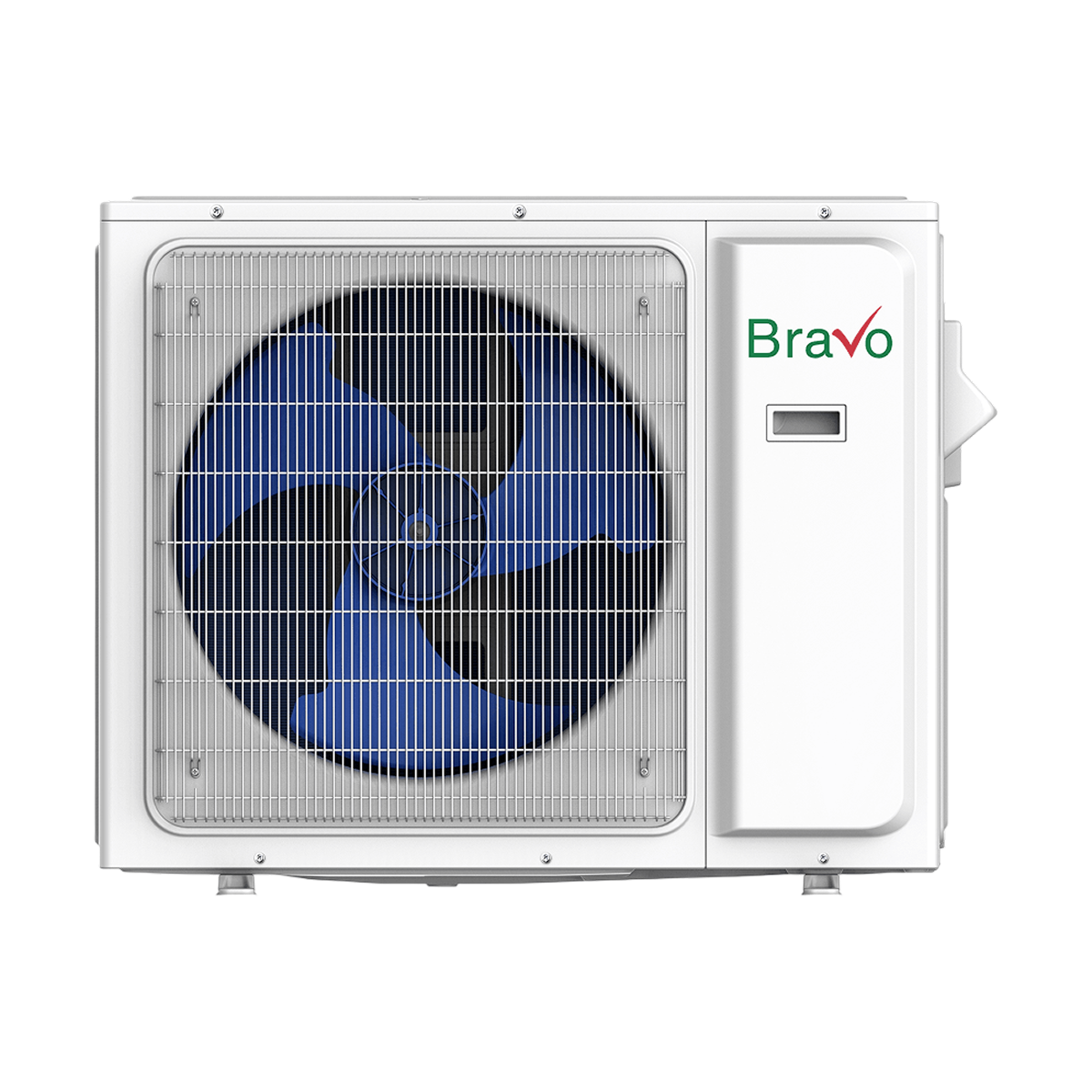

Efficient, compact, and built for versatility, the 18K Btu Bravo Milano Multi-Zone Outdoor Unit is the ideal foundation for personalized comfort across two or more indoor zones. With a SEER2 rating of up to 22, this 230V heat pump system offers strong energy savings while maintaining steady, reliable performance throughout the seasons.
Perfect for small to mid-sized homes, apartments, or multi-room commercial spaces, this 18K unit is well-suited for servicing areas such as two bedrooms and a living room, or a primary suite plus home office. Its multi-zone design allows you to pair different indoor unit types and capacities, giving you the flexibility to tailor comfort to each zone's unique needs. Using eco-friendly R32 refrigerant, this outdoor system delivers strong performance with a smaller environmental footprint.
Features
- AHRI Certified for verified performance
- Compatible with a mix of Bravo Milano indoor unit styles and capacities
- R32 refrigerant for efficient, environmentally responsible operation
- Engineered for reliable year-round heating and cooling
What's Included
- Bravo Milano 18,000 BTU 230V Heat Pump
- Line sets
Specifications
| Refrigerant type | R32 |
| System type | Multi-zone unit |
| BTU rated | 18,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Voltage range (V) | 165-264 |
| Refrigerant piping - liquid/gas side (inch) | 2x1/4"- 2x3/8" |
| EER2 | 12.3/11.8/12.05 |
| SEER2 | 22/19.5/20.75 |
| Net/gross weight (lb) | 75.0/80.5 |
| Unit dimensions (WxDxH) | 34.65×13.90×21.93 |
| Packing dimensions (WxDxH) | 35.55×15.04×24.21 |
| Operation range - heating | -13~75°F |
| Operation range - cooling | -13~125°F |
| Minimum circuit ampacity (A) | 15 |
| Max fuse (A) | 20 |
| Refrigerant precharge (ft) | Average 24.6 |
| Outdoor noise level (dB) | 54 dB |
| Outdoor air flow (CFM) | 1,529 CFM |
| Max height difference between Indoor and Outdoor unit | 49 ft |
| HSPF2-5 | 8/7/7.5 |
| HSPF2-4 | 10/9.5/9.75 |
| Heating capacity (Min/Max) (Btu/h) | 18,000 (4,200-22,000) |
| COP | 3.8/3.9/3.85 |
| Cooling capacity (Min/Max) (BTU/h) | 17,700 (3,800-19,800) |
| Additional Refrigerant Charge 1/4 liquid line | 0.16 |
Details
Overview
Efficient, compact, and built for versatility, the 18K Btu Bravo Milano Multi-Zone Outdoor Unit is the ideal foundation for personalized comfort across two or more indoor zones. With a SEER2 rating of up to 22, this 230V heat pump system offers strong energy savings while maintaining steady, reliable performance throughout the seasons.
Perfect for small to mid-sized homes, apartments, or multi-room commercial spaces, this 18K unit is well-suited for servicing areas such as two bedrooms and a living room, or a primary suite plus home office. Its multi-zone design allows you to pair different indoor unit types and capacities, giving you the flexibility to tailor comfort to each zone's unique needs. Using eco-friendly R32 refrigerant, this outdoor system delivers strong performance with a smaller environmental footprint.
Features
- AHRI Certified for verified performance
- Compatible with a mix of Bravo Milano indoor unit styles and capacities
- R32 refrigerant for efficient, environmentally responsible operation
- Engineered for reliable year-round heating and cooling
What's Included
- Bravo Milano 18,000 BTU 230V Heat Pump
- Line sets
