| Indoor unit | CH-RH09MASTWM-230VI |
| Refrigerant type | R454B |
| System type | Multi Zone |
| BTU rated | 9,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 1.27 |
| Voltage range (V) | 187-253 |
| Controller | Wire controller + remote controller available |
| Refrigerant piping - liquid/gas side (inch) | 1/4"/3/8" |
| EER2 | 14.9 |
| SEER2 | 25.8 |
| Net/gross weight (lb) | 23.37/29.98 |
| Unit dimensions (WxDxH) | 33.74 x 9.09 x 11.81 |
| Packing dimensions (WxDxH) | 36.22 x 12.20 x 14.57 |
| Operation range - heating | 32~86 |
| Operation range - cooling | 60~90 |
| Minimum circuit ampacity (A) | 3 |
| Max fuse (A) | 15 |
| Indoor noise level (H/M/L) | 43/31/18 |
| Indoor air flow | 441.4 / 323.7 / 229.6 / 176.6 |
| Indoor unit | CH-RH12MASTWM-230VI |
| Refrigerant type | R454B |
| System type | Multi Zone |
| BTU rated | 12,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 2.32 |
| Voltage range (V) | 187-253 |
| Controller | Wire controller + remote controller available |
| Refrigerant piping - liquid/gas side (inch) | 1/4"/3/8" |
| EER2 | 13 |
| SEER2 | 25.4 |
| Net/gross weight (lb) | 22.93/29.32 |
| Unit dimensions (WxDxH) | 33.74 x 9.09 x 11.81 |
| Packing dimensions (WxDxH) | 36.22 x 12.20 x 14.57 |
| Operation range - heating | 32~86 |
| Operation range - cooling | 60~90 |
| Minimum circuit ampacity (A) | 3 |
| Max fuse (A) | 15 |
| Indoor noise level (H/M/L) | 38/33.0/18.0 |
| Indoor air flow | 441.4 / 323.7 / 229.6 / 176.6 |
| Indoor unit | CH-RH18MASTWM-230VI |
| Refrigerant type | R454B |
| System type | Multi Zone |
| BTU rated | 18,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 4.23 |
| Voltage range (V) | 187-253 |
| Controller | Wire controller + remote controller available |
| Refrigerant piping - liquid/gas side (inch) | 1/4"/1/2" |
| EER2 | 12.7 |
| SEER2 | 23.5 |
| Net/gross weight (lb) | 27.34/36.60 |
| Unit dimensions (WxDxH) | 40.31 x 9.69 x 12.64 |
| Packing dimensions (WxDxH) | 43.11 x 12.80 x 15.75 |
| Operation range - heating | 32~86 |
| Operation range - cooling | 60~90 |
| Minimum circuit ampacity (A) | 3 |
| Max fuse (A) | 15 |
| Indoor noise level (H/M/L) | 45/39/28 |
| Indoor air flow | 635.7 / 500.3 / 359.0 / 294.3 |
| Outdoor unit | CH-R60MES-230VO |
| Refrigerant type | R454B |
| BTU rated | 60,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 10.57 |
| Voltage range (V) | 187-253 |
| Refrigerant piping - liquid/gas side (inch) | 6x1/4" - 4x3/8"+2x1/2" |
| Net/gross weight (lb) | 237.88/270.28 |
| Unit dimensions (WxDxH) | 37.48 x 16.34 x 52.48 |
| Packing dimensions (WxDxH) | 43.11 x 19.49 x 58.27 |
| Operation range - heating | -13~75 |
| Operation range - cooling | -13~122 |
| Minimum circuit ampacity (A) | 36 |
| Max fuse (A) | 40 |
| Max zones supported | 6 |
| Cooling capacity (Min/Max) (BTU/h) | 60,000 (19,000~62,000) |
| Heating capacity (Min/Max) (Btu/h) | 60,000 (20,000~60,000) |
| COP | 3.7 |
| HSPF2-5 | 7.4 |
| HSPF2-4 | 9.5 |
| Rated current - RLA (A) | 26.2 (9~26.2) |
| Compressor model | KTQ420D1UMU |
| Compressor type/brand | Rotary / GMCC |
| Compressor RLA (A) | 25 |
| Compressor input (W) | 3,700 |
| Refrigerant oil (oz) | VG74, 47.3 |
| Outdoor fan motor (qty/input/RLA) | 2 / 126W / 2.5A |
| Outdoor air flow (Max) (CFM) | 4,502.8 |
| Outdoor noise level (Max) (dB) | 65 |
| Refrigerant precharge (ft) | 150 |
| Additional refrigerant charge - liquid pipe (oz) | 151.68 |
| Design pressure (PSIG) | 550/340 |
| Max pipe length - all indoor units (ft) | 262.4' |
| Max pipe length - one indoor unit (ft) | 114.8' |
| Max height difference - indoor/outdoor (ft) | 49.2' |
| Max height difference - between indoor units (ft) | 33' |
Overview
This Cooper&Hunter 60,000 Btu/h multi-zone system pairs the CH-R60MES-230VO Regular Multi-Zone outdoor unit with two 9,000 Btu/h CH-RH09MASTWM-230VI, two 12,000 Btu/h CH-RH12MASTWM-230VI and one 18,000 Btu/h CH-RH18MASTWM-230VI Astoria wall mounted indoor units, giving each room its own independent temperature control from a single outdoor unit.
The outdoor unit uses R454B refrigerant and inverter technology that adjusts compressor speed to match the demand of each zone. It supports up to six zones.
Each Astoria indoor unit features Auto-Swing louvers, Follow Me mode, a removable magnetic top filter, and a built-in Smart Kit with the C&H app.
The bundle also includes the electrical and mounting accessories for a typical installation: a fused disconnect, non-metallic A/C whip, dual element fuses, and a condenser pad.
Features
- 60,000 Btu/h multi-zone system: one CH-R60MES-230VO outdoor unit with five indoor units (9,000, 9,000, 12,000, 12,000 and 18,000 Btu/h)
- Independent temperature control in each of the 5 zones
- Outdoor unit supports up to 6 zones
- Inverter technology for precise load matching and energy savings
- Uses eco-friendly R454B refrigerant with lower GWP
- High-Frequency Racer Technology: compressor reaches max speed within 6 seconds on startup
- Auto-Swing on both vertical and horizontal louvers
- Follow Me mode adjusts temperature based on remote location
- Easy-to-remove magnetic top filter for simple cleaning
- Built-in Smart Kit with downloadable C&H app and remote control; wall thermostat available separately
- Includes the disconnect, whip, fuses, and pad needed for installation

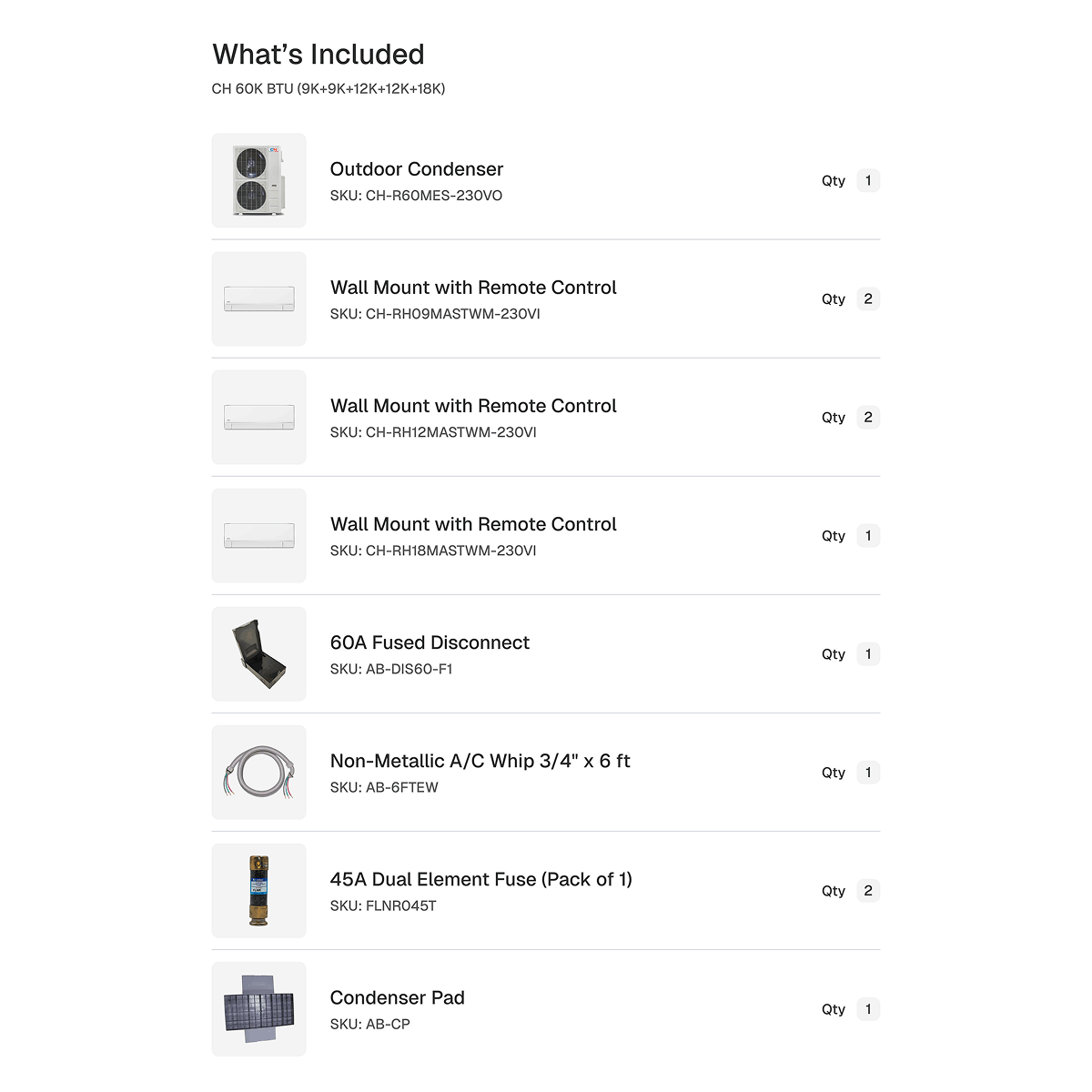

What's Included
- 60K Regular Multi-Zone Outdoor Unit (Heat Pump)
- 9K Astoria Wall Mounted Indoor Unit with Wall Mount and Wireless Remote Control - Qty 2
- 12K Astoria Wall Mounted Indoor Unit with Wall Mount and Wireless Remote Control - Qty 2
- 18K Astoria Wall Mounted Indoor Unit with Wall Mount and Wireless Remote Control
- 60A Fused Disconnect
- Non-Metallic A/C Whip
- 45A Dual Element Fuse (Pack of 1) - Qty 2
- Condenser Pad
Specifications
| Indoor unit | CH-RH09MASTWM-230VI |
| Refrigerant type | R454B |
| System type | Multi Zone |
| BTU rated | 9,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 1.27 |
| Voltage range (V) | 187-253 |
| Controller | Wire controller + remote controller available |
| Refrigerant piping - liquid/gas side (inch) | 1/4"/3/8" |
| EER2 | 14.9 |
| SEER2 | 25.8 |
| Net/gross weight (lb) | 23.37/29.98 |
| Unit dimensions (WxDxH) | 33.74 x 9.09 x 11.81 |
| Packing dimensions (WxDxH) | 36.22 x 12.20 x 14.57 |
| Operation range - heating | 32~86 |
| Operation range - cooling | 60~90 |
| Minimum circuit ampacity (A) | 3 |
| Max fuse (A) | 15 |
| Indoor noise level (H/M/L) | 43/31/18 |
| Indoor air flow | 441.4 / 323.7 / 229.6 / 176.6 |
| Indoor unit | CH-RH12MASTWM-230VI |
| Refrigerant type | R454B |
| System type | Multi Zone |
| BTU rated | 12,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 2.32 |
| Voltage range (V) | 187-253 |
| Controller | Wire controller + remote controller available |
| Refrigerant piping - liquid/gas side (inch) | 1/4"/3/8" |
| EER2 | 13 |
| SEER2 | 25.4 |
| Net/gross weight (lb) | 22.93/29.32 |
| Unit dimensions (WxDxH) | 33.74 x 9.09 x 11.81 |
| Packing dimensions (WxDxH) | 36.22 x 12.20 x 14.57 |
| Operation range - heating | 32~86 |
| Operation range - cooling | 60~90 |
| Minimum circuit ampacity (A) | 3 |
| Max fuse (A) | 15 |
| Indoor noise level (H/M/L) | 38/33.0/18.0 |
| Indoor air flow | 441.4 / 323.7 / 229.6 / 176.6 |
| Indoor unit | CH-RH18MASTWM-230VI |
| Refrigerant type | R454B |
| System type | Multi Zone |
| BTU rated | 18,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 4.23 |
| Voltage range (V) | 187-253 |
| Controller | Wire controller + remote controller available |
| Refrigerant piping - liquid/gas side (inch) | 1/4"/1/2" |
| EER2 | 12.7 |
| SEER2 | 23.5 |
| Net/gross weight (lb) | 27.34/36.60 |
| Unit dimensions (WxDxH) | 40.31 x 9.69 x 12.64 |
| Packing dimensions (WxDxH) | 43.11 x 12.80 x 15.75 |
| Operation range - heating | 32~86 |
| Operation range - cooling | 60~90 |
| Minimum circuit ampacity (A) | 3 |
| Max fuse (A) | 15 |
| Indoor noise level (H/M/L) | 45/39/28 |
| Indoor air flow | 635.7 / 500.3 / 359.0 / 294.3 |
| Outdoor unit | CH-R60MES-230VO |
| Refrigerant type | R454B |
| BTU rated | 60,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 10.57 |
| Voltage range (V) | 187-253 |
| Refrigerant piping - liquid/gas side (inch) | 6x1/4" - 4x3/8"+2x1/2" |
| Net/gross weight (lb) | 237.88/270.28 |
| Unit dimensions (WxDxH) | 37.48 x 16.34 x 52.48 |
| Packing dimensions (WxDxH) | 43.11 x 19.49 x 58.27 |
| Operation range - heating | -13~75 |
| Operation range - cooling | -13~122 |
| Minimum circuit ampacity (A) | 36 |
| Max fuse (A) | 40 |
| Max zones supported | 6 |
| Cooling capacity (Min/Max) (BTU/h) | 60,000 (19,000~62,000) |
| Heating capacity (Min/Max) (Btu/h) | 60,000 (20,000~60,000) |
| COP | 3.7 |
| HSPF2-5 | 7.4 |
| HSPF2-4 | 9.5 |
| Rated current - RLA (A) | 26.2 (9~26.2) |
| Compressor model | KTQ420D1UMU |
| Compressor type/brand | Rotary / GMCC |
| Compressor RLA (A) | 25 |
| Compressor input (W) | 3,700 |
| Refrigerant oil (oz) | VG74, 47.3 |
| Outdoor fan motor (qty/input/RLA) | 2 / 126W / 2.5A |
| Outdoor air flow (Max) (CFM) | 4,502.8 |
| Outdoor noise level (Max) (dB) | 65 |
| Refrigerant precharge (ft) | 150 |
| Additional refrigerant charge - liquid pipe (oz) | 151.68 |
| Design pressure (PSIG) | 550/340 |
| Max pipe length - all indoor units (ft) | 262.4' |
| Max pipe length - one indoor unit (ft) | 114.8' |
| Max height difference - indoor/outdoor (ft) | 49.2' |
| Max height difference - between indoor units (ft) | 33' |
Details
Overview
This Cooper&Hunter 60,000 Btu/h multi-zone system pairs the CH-R60MES-230VO Regular Multi-Zone outdoor unit with two 9,000 Btu/h CH-RH09MASTWM-230VI, two 12,000 Btu/h CH-RH12MASTWM-230VI and one 18,000 Btu/h CH-RH18MASTWM-230VI Astoria wall mounted indoor units, giving each room its own independent temperature control from a single outdoor unit.
The outdoor unit uses R454B refrigerant and inverter technology that adjusts compressor speed to match the demand of each zone. It supports up to six zones.
Each Astoria indoor unit features Auto-Swing louvers, Follow Me mode, a removable magnetic top filter, and a built-in Smart Kit with the C&H app.
The bundle also includes the electrical and mounting accessories for a typical installation: a fused disconnect, non-metallic A/C whip, dual element fuses, and a condenser pad.
Features
- 60,000 Btu/h multi-zone system: one CH-R60MES-230VO outdoor unit with five indoor units (9,000, 9,000, 12,000, 12,000 and 18,000 Btu/h)
- Independent temperature control in each of the 5 zones
- Outdoor unit supports up to 6 zones
- Inverter technology for precise load matching and energy savings
- Uses eco-friendly R454B refrigerant with lower GWP
- High-Frequency Racer Technology: compressor reaches max speed within 6 seconds on startup
- Auto-Swing on both vertical and horizontal louvers
- Follow Me mode adjusts temperature based on remote location
- Easy-to-remove magnetic top filter for simple cleaning
- Built-in Smart Kit with downloadable C&H app and remote control; wall thermostat available separately
- Includes the disconnect, whip, fuses, and pad needed for installation
What's Included
- 60K Regular Multi-Zone Outdoor Unit (Heat Pump)
- 9K Astoria Wall Mounted Indoor Unit with Wall Mount and Wireless Remote Control - Qty 2
- 12K Astoria Wall Mounted Indoor Unit with Wall Mount and Wireless Remote Control - Qty 2
- 18K Astoria Wall Mounted Indoor Unit with Wall Mount and Wireless Remote Control
- 60A Fused Disconnect
- Non-Metallic A/C Whip
- 45A Dual Element Fuse (Pack of 1) - Qty 2
- Condenser Pad
