| Indoor unit | CH-MP24AHU24V |
| Refrigerant type | R454B |
| System type | Single Zone |
| BTU rated | 24,000 |
| Power source | 115/208/230V,60Hz |
| Dehumidification value (pnt/day) | 4.69 |
| Voltage range (V) | 187-253 |
| Controller | 120N/24V |
| Refrigerant piping - liquid/gas side (inch) | 3/8" 3/4" |
| EER2 | 8.0 |
| SEER2 | 16.4 |
| Net/gross weight (lb) | 105/127 |
| Unit dimensions (WxDxH) | 21.02 x 17.52 x 45.00 |
| Packing dimensions (WxDxH) | 26.57 x 20.87 x 48.62 |
| Operation range - heating | 60~90 |
| Operation range - cooling | 60~90 |
| Minimum circuit ampacity (A) | 4.4/3 |
| Max fuse (A) | 15 |
| Indoor noise level (H/M/L) | 49/46/44/39.5/N\A |
| Indoor air flow | 824.04 / 759.29 / 694.55 / 629.80 |
| ESP range | 0-0.8 In.W.G |
| Drainage pipe diameter (inch) | 3/4" |
| Outdoor unit | CH-ALT24HP24V-230VO |
| Refrigerant type | R454B |
| BTU rated | 24,000 |
| Power source | 115/208/230V,60Hz |
| Dehumidification value (pnt/day) | 4.69 |
| Voltage range (V) | 187-253 |
| Refrigerant piping - liquid/gas side (inch) | 3/8" 3/4" |
| Net/gross weight (lb) | 79.37/85.54 |
| Unit dimensions (WxDxH) | 31.69 x 12.99 x 21.81 |
| Packing dimensions (WxDxH) | 36.02 x 14.57 x 24.21 |
| Operation range - heating | -13~75 |
| Operation range - cooling | -13~122 |
| Minimum circuit ampacity (A) | 20 |
| Max fuse (A) | 25 |
| Max. pipe length (ft) | 164' |
| HSPF2-5 | 6.9 |
| HSPF2-4 | 8.7 |
| Cooling capacity (Min/Max) (BTU/h) | 24,000 (7,300~23500) |
| Refrigerant precharge | 24.6 |
| Outdoor Noise Level | 53 |
| Outdoor Air Flow | 1450 |
| Max height difference between Indoor and Outdoor unit | 82' |
| Heating capacity (Min/Max) (Btu/h) | 23000 (8100~25400) |
| COP | 3.00 |
| Additional Refrigerant Charge 3/8 liquid line | .7 oz/ft |
Overview
This Cooper&Hunter matched system pairs the 24,000 Btu/h CH-ALT24HP24V-230VO ALTO Series heat pump outdoor unit with the CH-MP24AHU24V ALTO Series air handler, delivering reliable heating and cooling for residential and light-commercial installations. Buying the indoor and outdoor units as a matched pair takes the guesswork out of system selection.
The ALTO outdoor unit has a side-discharge design that reduces footprint, plus high-efficiency inverter-driven technology that optimizes energy use. The compact ALTO air handler is well suited for installations where space is limited.
The bundle also includes the electrical and mounting accessories for a typical installation: a fused disconnect, non-metallic A/C whip, dual element fuses, and a condenser pad.
Features
- 24,000 Btu/h heat pump outdoor unit paired with a matching ALTO Series air handler
- Heating and cooling from a single system
- High-efficiency inverter-driven technology
- Side-discharge outdoor unit for reduced footprint and flexible installation
- Compact air handler design for space-limited installations
- Designed for residential and light-commercial applications
- Includes the disconnect, whip, fuses, and pad needed for installation

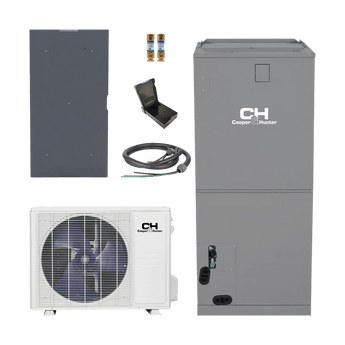

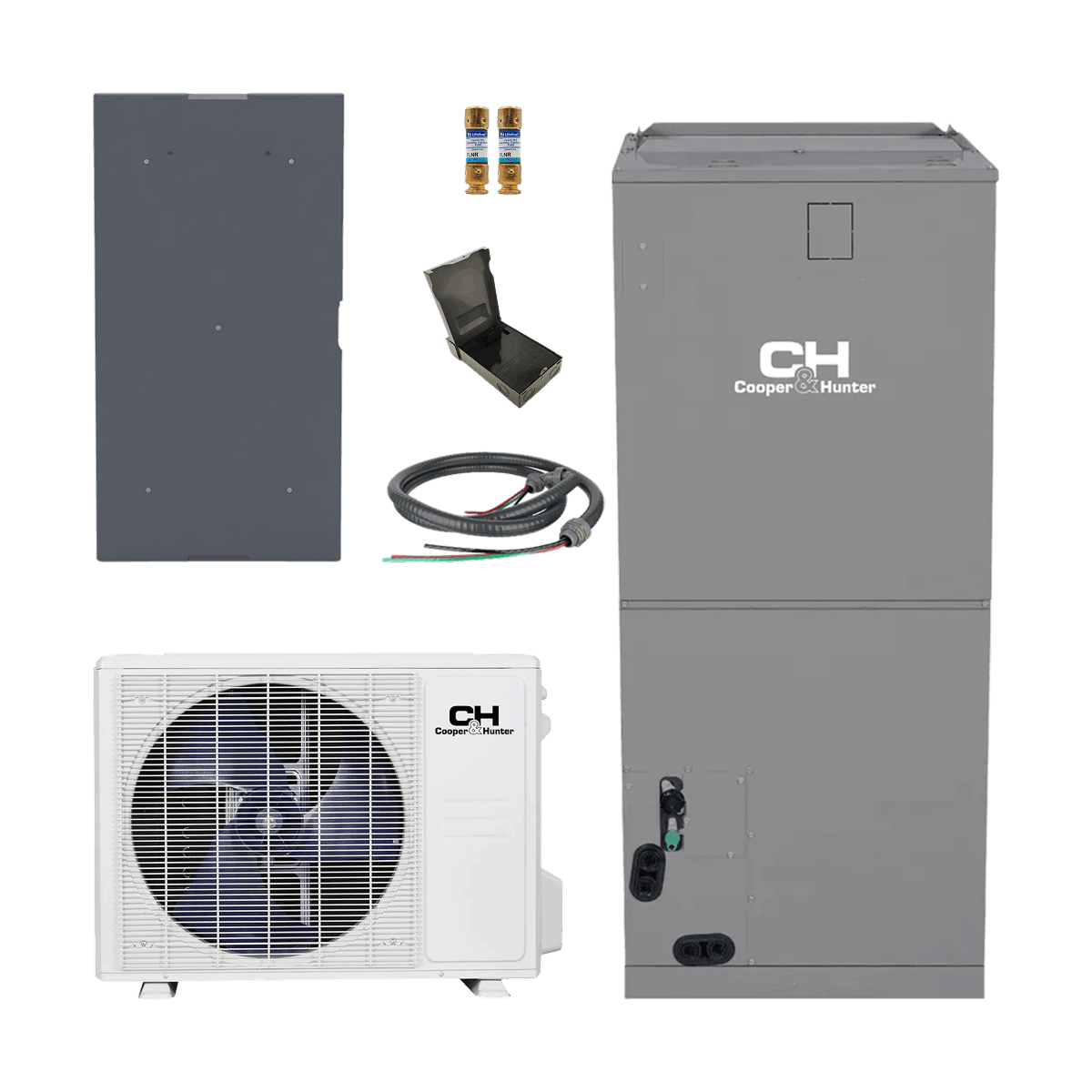

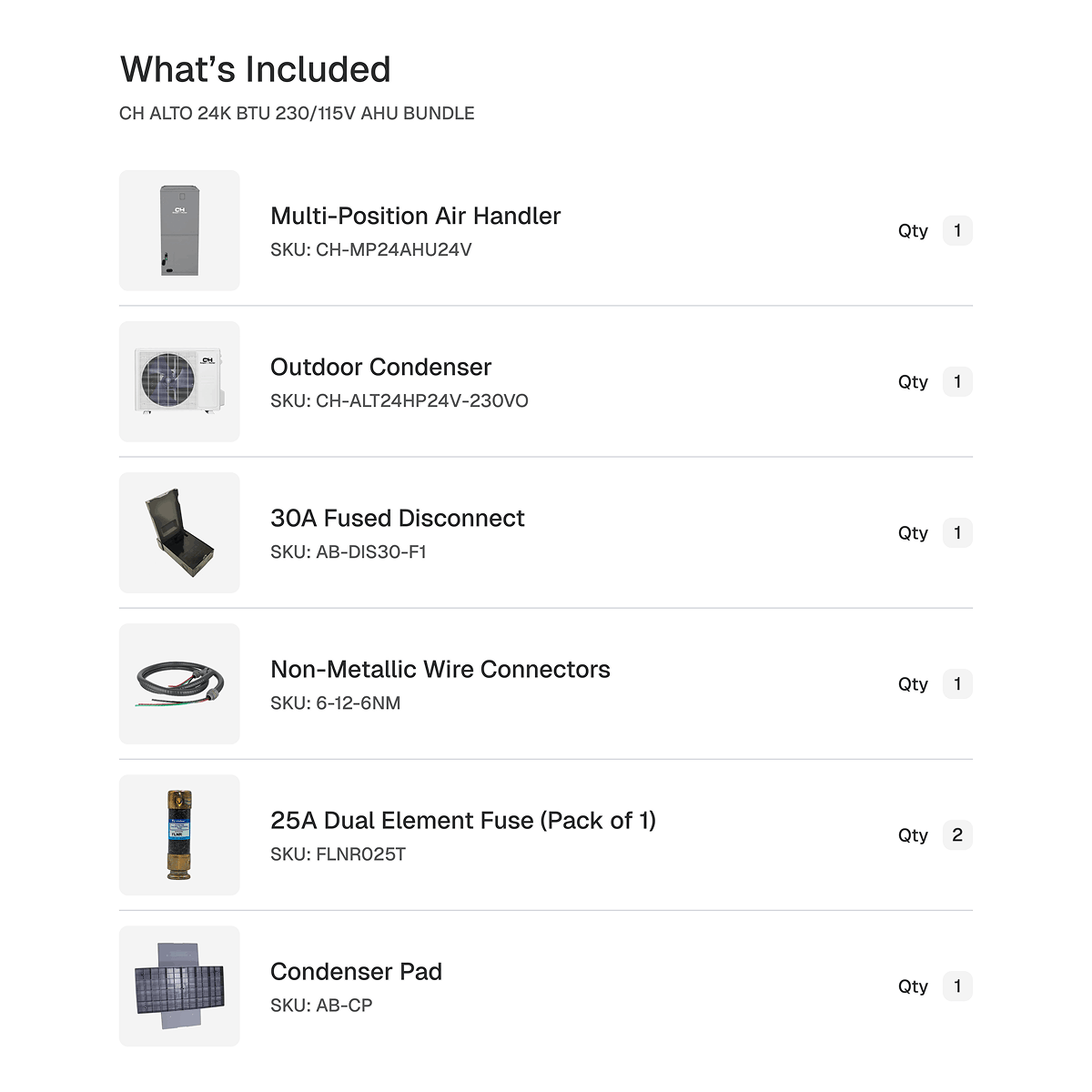

What's Included
- 24K ALTO Series Outdoor Unit (Heat Pump)
- 24K ALTO Series Air Handler Indoor Unit
- 30A Fused Disconnect
- Non-Metallic A/C Whip
- 25A Dual Element Fuse (Pack of 1) - Qty 2
- Condenser Pad
Specifications
| Indoor unit | CH-MP24AHU24V |
| Refrigerant type | R454B |
| System type | Single Zone |
| BTU rated | 24,000 |
| Power source | 115/208/230V,60Hz |
| Dehumidification value (pnt/day) | 4.69 |
| Voltage range (V) | 187-253 |
| Controller | 120N/24V |
| Refrigerant piping - liquid/gas side (inch) | 3/8" 3/4" |
| EER2 | 8.0 |
| SEER2 | 16.4 |
| Net/gross weight (lb) | 105/127 |
| Unit dimensions (WxDxH) | 21.02 x 17.52 x 45.00 |
| Packing dimensions (WxDxH) | 26.57 x 20.87 x 48.62 |
| Operation range - heating | 60~90 |
| Operation range - cooling | 60~90 |
| Minimum circuit ampacity (A) | 4.4/3 |
| Max fuse (A) | 15 |
| Indoor noise level (H/M/L) | 49/46/44/39.5/N\A |
| Indoor air flow | 824.04 / 759.29 / 694.55 / 629.80 |
| ESP range | 0-0.8 In.W.G |
| Drainage pipe diameter (inch) | 3/4" |
| Outdoor unit | CH-ALT24HP24V-230VO |
| Refrigerant type | R454B |
| BTU rated | 24,000 |
| Power source | 115/208/230V,60Hz |
| Dehumidification value (pnt/day) | 4.69 |
| Voltage range (V) | 187-253 |
| Refrigerant piping - liquid/gas side (inch) | 3/8" 3/4" |
| Net/gross weight (lb) | 79.37/85.54 |
| Unit dimensions (WxDxH) | 31.69 x 12.99 x 21.81 |
| Packing dimensions (WxDxH) | 36.02 x 14.57 x 24.21 |
| Operation range - heating | -13~75 |
| Operation range - cooling | -13~122 |
| Minimum circuit ampacity (A) | 20 |
| Max fuse (A) | 25 |
| Max. pipe length (ft) | 164' |
| HSPF2-5 | 6.9 |
| HSPF2-4 | 8.7 |
| Cooling capacity (Min/Max) (BTU/h) | 24,000 (7,300~23500) |
| Refrigerant precharge | 24.6 |
| Outdoor Noise Level | 53 |
| Outdoor Air Flow | 1450 |
| Max height difference between Indoor and Outdoor unit | 82' |
| Heating capacity (Min/Max) (Btu/h) | 23000 (8100~25400) |
| COP | 3.00 |
| Additional Refrigerant Charge 3/8 liquid line | .7 oz/ft |
Details
Overview
This Cooper&Hunter matched system pairs the 24,000 Btu/h CH-ALT24HP24V-230VO ALTO Series heat pump outdoor unit with the CH-MP24AHU24V ALTO Series air handler, delivering reliable heating and cooling for residential and light-commercial installations. Buying the indoor and outdoor units as a matched pair takes the guesswork out of system selection.
The ALTO outdoor unit has a side-discharge design that reduces footprint, plus high-efficiency inverter-driven technology that optimizes energy use. The compact ALTO air handler is well suited for installations where space is limited.
The bundle also includes the electrical and mounting accessories for a typical installation: a fused disconnect, non-metallic A/C whip, dual element fuses, and a condenser pad.
Features
- 24,000 Btu/h heat pump outdoor unit paired with a matching ALTO Series air handler
- Heating and cooling from a single system
- High-efficiency inverter-driven technology
- Side-discharge outdoor unit for reduced footprint and flexible installation
- Compact air handler design for space-limited installations
- Designed for residential and light-commercial applications
- Includes the disconnect, whip, fuses, and pad needed for installation
What's Included
- 24K ALTO Series Outdoor Unit (Heat Pump)
- 24K ALTO Series Air Handler Indoor Unit
- 30A Fused Disconnect
- Non-Metallic A/C Whip
- 25A Dual Element Fuse (Pack of 1) - Qty 2
- Condenser Pad
