| Indoor unit | CH-ACL18-24A |
| Refrigerant type | R454B |
| System type | Single Zone |
| BTU rated | 24,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 6.1 |
| Voltage range (V) | 187-255 |
| Controller | 120N wire controller |
| Refrigerant piping - liquid/gas side (inch) | 3/8" 3/4" |
| EER2 | 10 |
| SEER2 | 16 |
| Net/gross weight (lb) | 42/50 |
| Unit dimensions (WxDxH) | 14-1/2 x 21 x 18 |
| Packing dimensions (WxDxH) | 17-1/2 x 25-3/8 x 20-5/8 |
| Operation range - heating | 32~86 |
| Operation range - cooling | 60~90 |
| Drainage pipe diameter (inch) | 1" |
| Outdoor unit | CH-PQ24-230VO |
| Refrigerant type | R454B |
| BTU rated | 24,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 4.7 |
| Voltage range (V) | 187-253 |
| Refrigerant piping - liquid/gas side (inch) | 3/8" 3/4" |
| Net/gross weight (lb) | 102.29/109.13 |
| Unit dimensions (WxDxH) | 35.04 x 13.46 x 26.50 |
| Packing dimensions (WxDxH) | 39.17 x 15.67 x 29.13 |
| Operation range - heating | -22~75 |
| Operation range - cooling | -22~122 |
| Minimum circuit ampacity (A) | 19 |
| Max fuse (A) | 20 |
| Max. pipe length (ft) | 164' |
| HSPF2-5 | 8.1 |
| HSPF2-4 | 10 |
| Cooling capacity (Min/Max) (BTU/h) | 24,000 (6,400~28,700) |
| Refrigerant precharge | 25 |
| Outdoor Noise Level | 59 |
| Outdoor Air Flow | 1,765.8 |
| Max height difference between Indoor and Outdoor unit | 82' |
| Heating capacity (Min/Max) (Btu/h) | 24,000 (6,700~29,100) |
| COP | 3.49 |
| Additional Refrigerant Charge 3/8 liquid line | 0.7 oz/ft |
Overview
This Cooper&Hunter matched system pairs the 24,000 Btu/h CH-PQ24-230VO PEAQ Series outdoor unit with a 14.5-inch CH-ACL18-24A cased A-Coil evaporator, delivering reliable year-round comfort for retrofit and replacement projects. Properly matching the indoor coil to the outdoor unit is essential for optimal performance, and this bundle takes the guesswork out of that process.
The PEAQ Series outdoor unit uses R454B refrigerant and is built for year-round cooling and heating performance.
The cased evaporator coil is designed to fit onto existing furnaces, and it includes the exclusive 120F SmartKit built-in wall thermostat for intuitive temperature control.
The bundle also includes the electrical and mounting accessories for a typical installation: a fused disconnect, non-metallic A/C whip, dual element fuses, and a condenser pad.
Features
- 24,000 Btu/h PEAQ Series outdoor unit paired with a matched 14.5-inch A-Coil evaporator (18K-24K, Body Type A)
- Year-round cooling and heating
- Uses eco-friendly R454B refrigerant
- Cased evaporator coil designed to fit onto existing furnaces, ideal for retrofit and replacement projects
- Includes the 120F SmartKit built-in wall thermostat
- Includes the disconnect, whip, fuses, and pad needed for installation

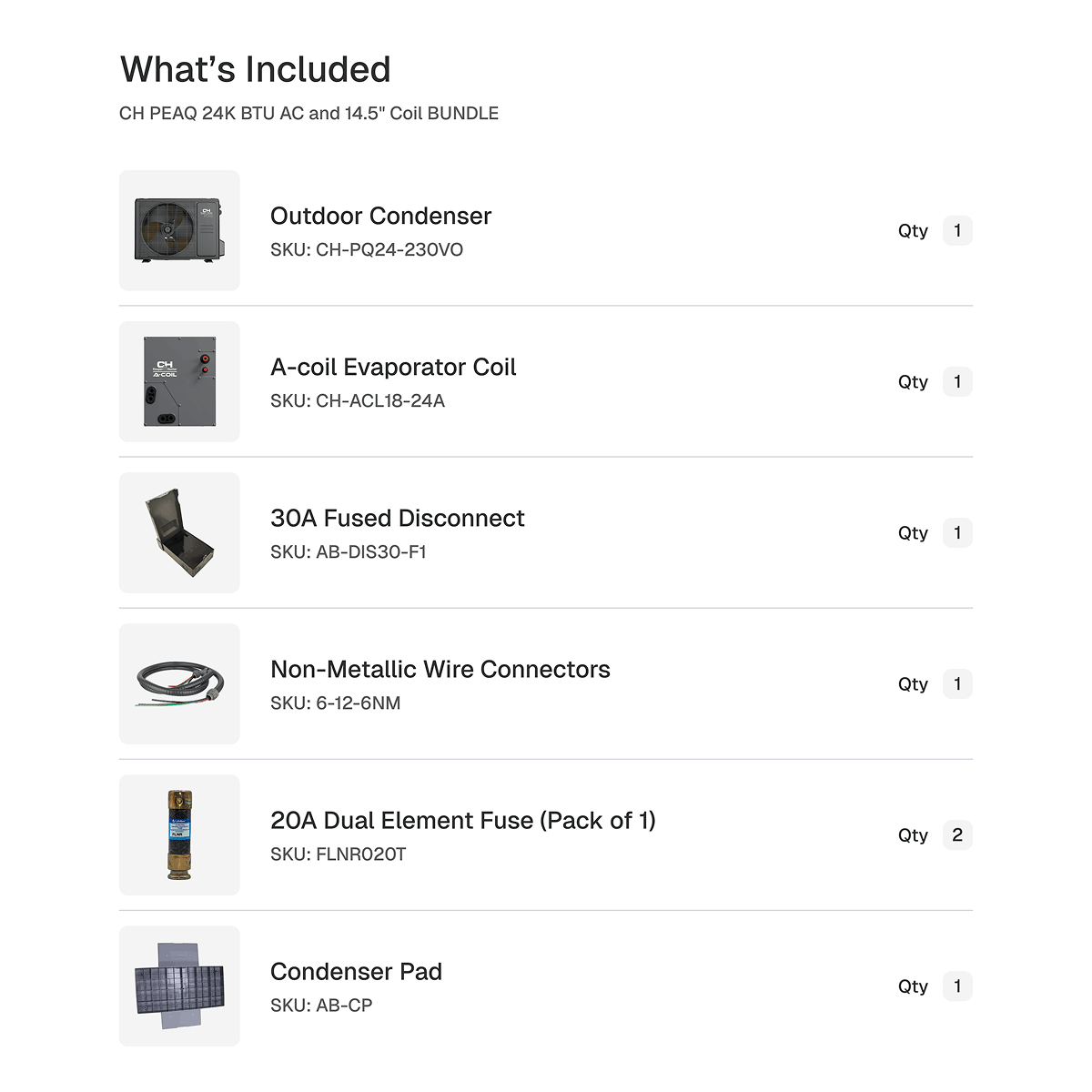

What's Included
- 24K PEAQ Series Outdoor Unit
- 14.5" A-Coil Evaporator (18K-24K, Body Type A)
- 30A Fused Disconnect
- Non-Metallic A/C Whip
- 20A Dual Element Fuse (Pack of 1) - Qty 2
- Condenser Pad
Specifications
| Indoor unit | CH-ACL18-24A |
| Refrigerant type | R454B |
| System type | Single Zone |
| BTU rated | 24,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 6.1 |
| Voltage range (V) | 187-255 |
| Controller | 120N wire controller |
| Refrigerant piping - liquid/gas side (inch) | 3/8" 3/4" |
| EER2 | 10 |
| SEER2 | 16 |
| Net/gross weight (lb) | 42/50 |
| Unit dimensions (WxDxH) | 14-1/2 x 21 x 18 |
| Packing dimensions (WxDxH) | 17-1/2 x 25-3/8 x 20-5/8 |
| Operation range - heating | 32~86 |
| Operation range - cooling | 60~90 |
| Drainage pipe diameter (inch) | 1" |
| Outdoor unit | CH-PQ24-230VO |
| Refrigerant type | R454B |
| BTU rated | 24,000 |
| Power source | 208-230V, 1Ph, 60Hz |
| Dehumidification value (pnt/day) | 4.7 |
| Voltage range (V) | 187-253 |
| Refrigerant piping - liquid/gas side (inch) | 3/8" 3/4" |
| Net/gross weight (lb) | 102.29/109.13 |
| Unit dimensions (WxDxH) | 35.04 x 13.46 x 26.50 |
| Packing dimensions (WxDxH) | 39.17 x 15.67 x 29.13 |
| Operation range - heating | -22~75 |
| Operation range - cooling | -22~122 |
| Minimum circuit ampacity (A) | 19 |
| Max fuse (A) | 20 |
| Max. pipe length (ft) | 164' |
| HSPF2-5 | 8.1 |
| HSPF2-4 | 10 |
| Cooling capacity (Min/Max) (BTU/h) | 24,000 (6,400~28,700) |
| Refrigerant precharge | 25 |
| Outdoor Noise Level | 59 |
| Outdoor Air Flow | 1,765.8 |
| Max height difference between Indoor and Outdoor unit | 82' |
| Heating capacity (Min/Max) (Btu/h) | 24,000 (6,700~29,100) |
| COP | 3.49 |
| Additional Refrigerant Charge 3/8 liquid line | 0.7 oz/ft |
Details
Overview
This Cooper&Hunter matched system pairs the 24,000 Btu/h CH-PQ24-230VO PEAQ Series outdoor unit with a 14.5-inch CH-ACL18-24A cased A-Coil evaporator, delivering reliable year-round comfort for retrofit and replacement projects. Properly matching the indoor coil to the outdoor unit is essential for optimal performance, and this bundle takes the guesswork out of that process.
The PEAQ Series outdoor unit uses R454B refrigerant and is built for year-round cooling and heating performance.
The cased evaporator coil is designed to fit onto existing furnaces, and it includes the exclusive 120F SmartKit built-in wall thermostat for intuitive temperature control.
The bundle also includes the electrical and mounting accessories for a typical installation: a fused disconnect, non-metallic A/C whip, dual element fuses, and a condenser pad.
Features
- 24,000 Btu/h PEAQ Series outdoor unit paired with a matched 14.5-inch A-Coil evaporator (18K-24K, Body Type A)
- Year-round cooling and heating
- Uses eco-friendly R454B refrigerant
- Cased evaporator coil designed to fit onto existing furnaces, ideal for retrofit and replacement projects
- Includes the 120F SmartKit built-in wall thermostat
- Includes the disconnect, whip, fuses, and pad needed for installation
What's Included
- 24K PEAQ Series Outdoor Unit
- 14.5" A-Coil Evaporator (18K-24K, Body Type A)
- 30A Fused Disconnect
- Non-Metallic A/C Whip
- 20A Dual Element Fuse (Pack of 1) - Qty 2
- Condenser Pad
