Cooper&Hunter
Product specifications
| Brand | |
|---|---|
| Power Source | |
| EER Rating | |
| SEER Rating | |
| Type | |
| Refrigerant type | |
| BTU | |
| Package dimensions |
Package content
- PEAQ Multi-Position Air Handler Indoor Unit
- Auxiliary Heater (optional)

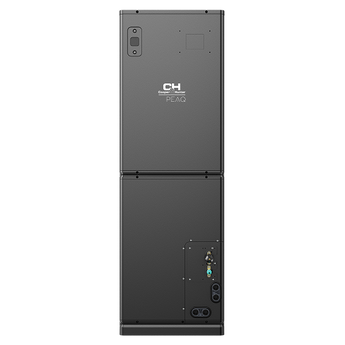

PEAQ Multi-Position Air Handler
Our PEAQ Multi-Position Air Handler offers adaptable performance with multiple installation options. Ideal for tight spaces or custom layouts, it ensures smooth airflow and efficient temperature control in residential or small business settings.
Consistent Comfort
Reliable Climate in Every Corner
This air handler provides steady and even airflow throughout the entire space, preventing hot and cold spots. By maintaining a balanced temperature in every area, it ensures a stable environment that supports comfort and productivity whether you’re working, relaxing, or sleeping.
Precise Temperature Control
Intelligent Power Adjustment
The system continuously adjusts its operation in real time to maintain your preferred temperature with minimal fluctuations. This intelligent control enhances energy efficiency, lowers noise levels, and ensures a steady, comfortable environment throughout the day, delivering reliable performance and improved overall comfort.
Troubleshooting Made Easy
Built-In System Health Checker
The self-diagnostic system continuously monitors the unit’s performance and detects any abnormalities in real time. When an issue arises, it automatically displays a clear error code, allowing for faster diagnosis and quicker repairs—minimizing downtime and simplifying maintenance.
| System Type |
Hyper
|
||||||
|---|---|---|---|---|---|---|---|
| Indoor Model | CH-PQ18AHU | CH-PQ24AHU | CH-PQ33AHU | CH-PQ36AHU | CH-PQ48AHU | CH-PQ55AHU | |
| Power Supply (V,Ph,Hz) | 115/208/230,1,60 | 115/208/230,1,60 | 115/208/230,1,60 | 115/208/230,1,60 | 115/208/230,1,60 | 115/208/230,1,60 | |
| Rated Capacity (Btu/h) | 18,000 | 24,000 | 30,000 | 36,000 | 48,000 | 54,000 | |
| Minimum Circuit Ampacity (A) | 5.5/3.5 | 5.5/3.5 | 8.0/6.05 | 8.0/6.0 | 14.5/10 | 14.5/10 | |
| Max. Fuse (A) | 15 | 15 | 15 | 15 | 15 | 15 | |
| Indoor Air Flow - Turbo/Hi/Mi/Lo (CFM) | 618.0/576.8/529.7/488.5 | 824.0/759.3/694.5/629.8 | 988.8/894.7/806.4/712.2 | 1236.1/1147.8/1059.5/971.2 | 1601.0/1442.1/1265.5/1088.9 | 1801.1/1648.1/1500.9/1236.1 | |
| Indoor Noise Level - Hi/Mi/Lo (dB(A)) | N\A/42.5/40.5/37 | N\A/47.5/44/33 | 49/47/45.5/31.5 | N\A/49.5/48/31.5 | N\A/53.0/49.5/33.5 | 60.0/57.0/54.5/37.0 | |
| Dimension (WxDxH) (inch) | 14.49x21.50x49.72 | 14.49x21.50x49.72 | 17.52x21.50x53.98 | 17.52x21.50x53.98 | 21.50x21.50x55.94 | 21.50x21.50x55.94 | |
| Packing (WxDxH) (inch) | 52.95x17.52x31.10 | 52.95x17.52x31.10 | 57.09x20.47x31.10 | 57.09x20.47x31.10 | 59.84x25.00x31.10 | 59.84x25.00x31.10 | |
| Net/Gross Weight (lbs.) | 123.02/154.76 | 123.02/154.76 | 149.25/182.10 | 149.25/182.10 | 186.51/232.14 | 188.05/238.32 | |
| Room Temperature | |||||||
| Cooling (°F) | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | 60~90 | |
| Heating (°F) | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | 32~86 | |
| System Type |
Hyper
|
||||||
|---|---|---|---|---|---|---|---|
| Outdoor Model | CH-PQ18-230VO | CH-PQ24-230VO | CH-PQ33-230VO | CH-PQ36-230VO | CH-PQ48-230VO | CH-PQ55-230VO | |
| Power Supply (V,Ph,Hz) | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | 208/230,1,60 | |
| Voltage Range (V) | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | 187-253 | |
| Cooling | |||||||
| Rated Capacity (range) (Btu/h) | 4,600~23,100 | 6,400~28,700 | 11,200~40,000 | 14,800~41,700 | 18,000~52,000 | 11,400~60,000 | |
| Rated Current (A) | 10.5 | 14 | 18 | 18 | 28 | 31 | |
| EER2 (Btu/h) | 12.5 | 12 | 12 | 12 | 12 | 12 | |
| SEER2 (Btu/h) | 19 | 18.6 | 17.2 | 17.7 | 17.5 | 17.5 | |
| Heating at 47°F | |||||||
| Rated Capacity (range) (Btu/h) | 5,700~23,100 | 6,700~29,100 | 9,700~35,800 | 10,700~38,400 | 13,500~52,000 | 8,600~60,000 | |
| COP (W/W) | 3.6 | 3.49 | 3.54 | 3.6 | 3.28 | 3.35 | |
| HSPF4 | 10.1 | 10 | 10.8 | 10 | 9.5 | 9.5 | |
| HSPF5 | 8.5 | 8.1 | 8.8 | 8 | 7.7 | 7.7 | |
| Minimum Circuit Ampacity (A) | 16 | 19 | 29.5 | 26 | 38 | 40 | |
| Max. Fuse (Outdoor Unit) (A) | 20 | 20 | 30 | 30 | 40 | 40 | |
| Outdoor Air Flow (Max.) (CFM) | 1,765.8 | 1,765.8 | 3,001.9 | 3,001.9 | 3,037.2 | 2,648.7 | |
| Outdoor Noise Level (Sound Pressure) (dB(A)) | 56.5 | 59 | 62 | 62.5 | 65 | 64.5 | |
| Dimension (WxDxH) (inch) | 35.04x13.46x26.50 | 35.04x13.46x26.50 | 37.24x16.14x31.89 | 37.24x16.14x31.89 | 38.58x16.34x38.39 | 37.48x16.34x52.48 | |
| Packing (WxDxH) (inch) | 39.17x15.67x29.13 | 39.17x15.67x29.13 | 42.91x19.68x34.84 | 42.91x19.68x34.84 | 45.08x19.68x42.52 | 43.11x19.49x58.27 | |
| Net/Gross Weight (lbs.) | 101.41/109.13 | 102.29/109.13 | 166.67/176.37 | 166.67/176.37 | 232.59/201.50 | 242.95/275.13 | |
| Refrigerant Type/Charge (oz.) | R454B/74.08 | R454B/74.08 | R454B/105.82 | R454B/126.99 | R454B/134.04 | R454B/183.42 | |
| Refrigerant Precharge Length (ft.) | 25 | 25 | 25 | 25 | 25 | 25 | |
| Additional Charge for Each ft. (oz/ft) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
| Design Pressure (PSIG) | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | 550/340 | |
| Refrigerant Piping Liquid Side/Gas Side (inch) | 3/8”/3/4” | 3/8”/3/4” | 3/8”/3/4” | 3/8”/3/4” | 3/8”/3/4” | 3/8”/3/4” | |
| Max. Pipe Length (ft.) | 164 | 164 | 164 | 213.2 | 246 | 246 | |
| Max. Difference in Level (ft.) | 82 | 82 | 82 | 98.4 | 98.4 | 98.4 | |
| Ambient Temperature | |||||||
| Cooling (°F) | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 | -22~122 | |
| Heating (°F) | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 | -22~75 | |
