| Refrigerant Support | 70+ refrigerants |
| Compatibility | A2L Compatible |
| Vacuum Port | 3/8" |
| Data Logging | Up to 168 hrs across 9 jobs |
| Languages | 12 |
| Ingress Protection | IP55 |
| Max Manifold Pressure | 870 psig |
| Vacuum Range | 50-9999 microns |
| Display | 5" LCD |
| Battery | 6x AA, 405 hr life |
| Wireless Range | 1000 ft |
| Weight | 4.6 lbs |
Overview

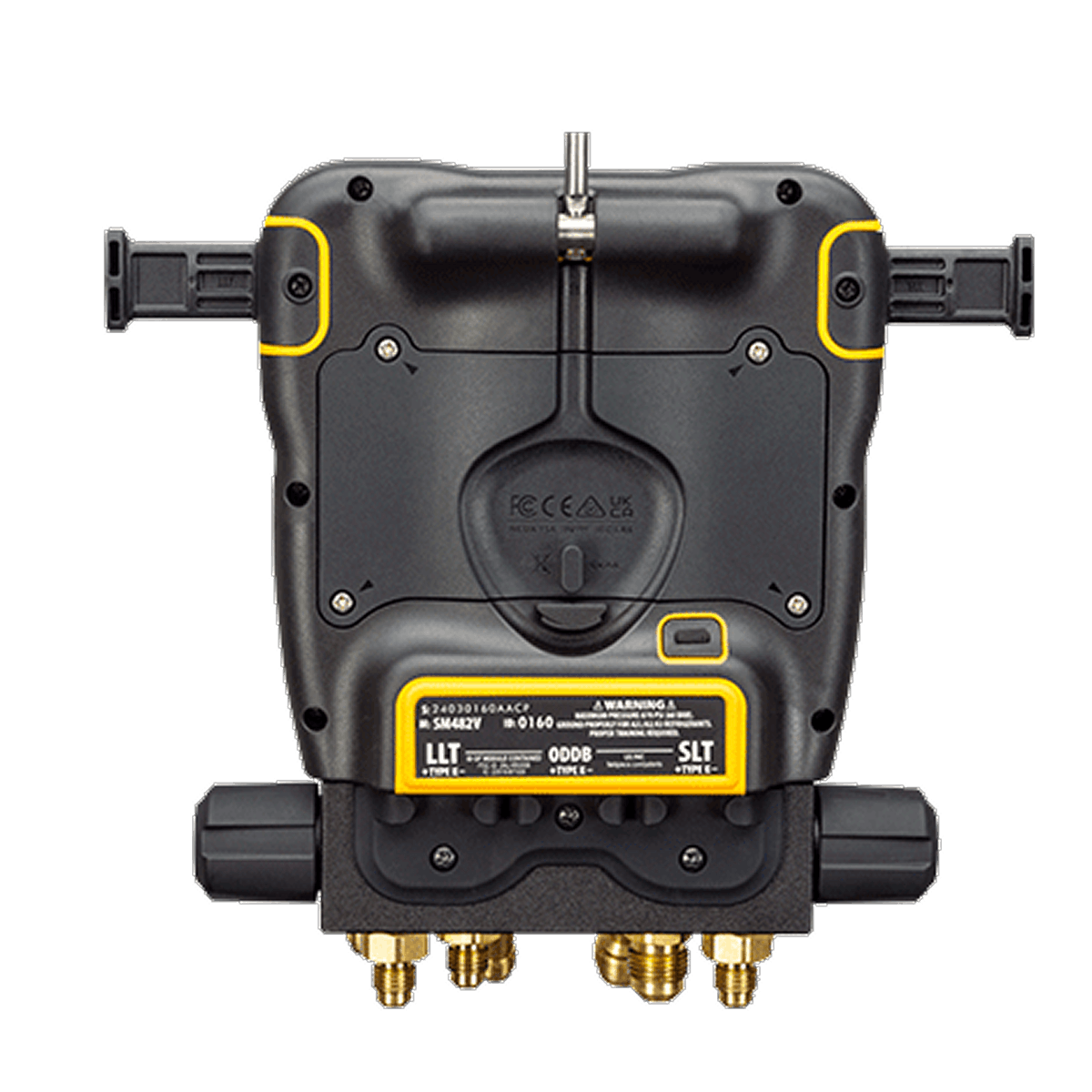

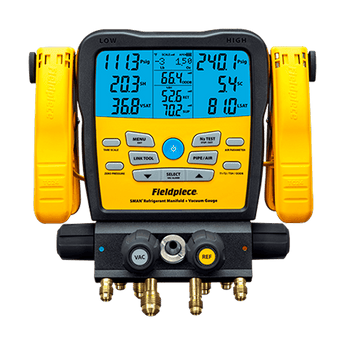

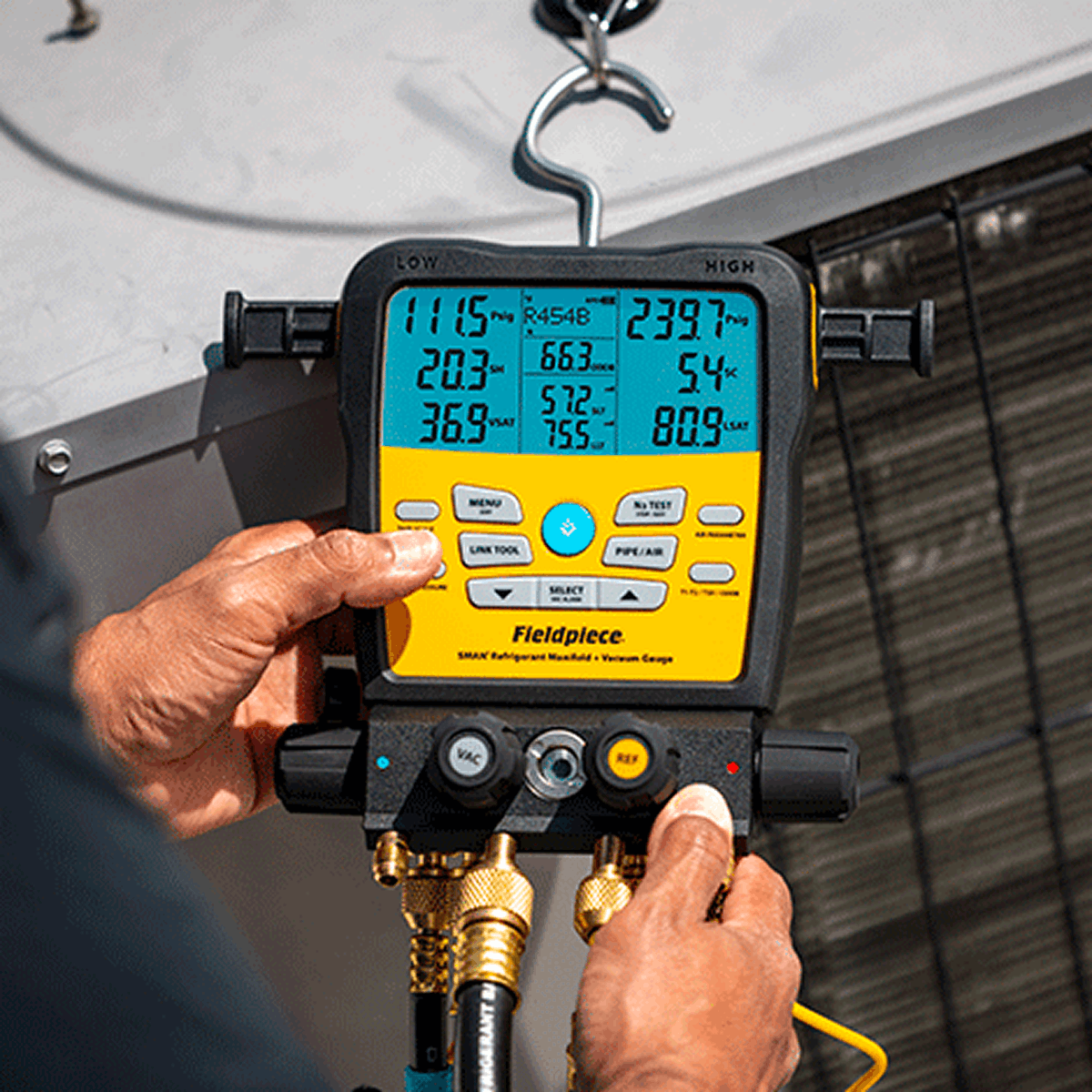

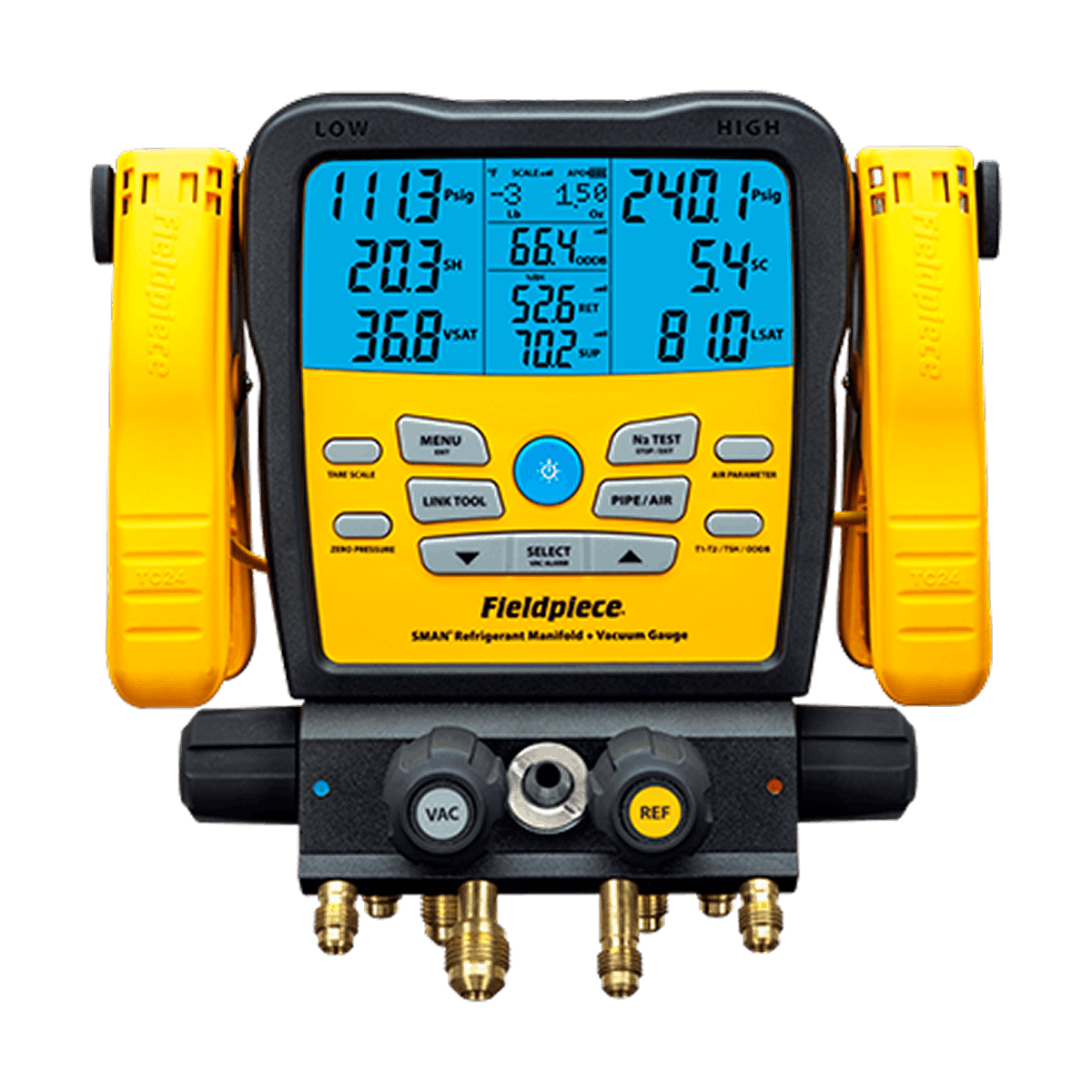

The Fieldpiece SM482V SMAN® Wireless Refrigerant Manifold supports over 70 refrigerants, is A2L compatible, and features an integrated vacuum gauge with a 3/8" vacuum port and block for fast evacuations. It logs hours of data, runs temperature-compensated nitrogen pressure tests, displays in 12 languages, and serves as a central data hub for Job Link® wireless tools. It's dust and water resistant (IP55).
Features
- Supports over 70 refrigerants, A2L compatible
- Integrated vacuum gauge, 3/8" vacuum port and block
- Logs up to 168 continuous hours across 9 stored jobs
- Runs temperature-compensated nitrogen pressure test
- Displays in 12 languages
- Central data hub for Job Link® wireless tools, connects to Job Link System App
- Dust and water resistant (IP55)
What's Included
- 1x SM482V 4-Port Manifold
- 2x TC24 Wired Type-K Pipe Clamp Thermocouple
- 1x ATA1 Type-K Bead Thermocouple with Clip
- 1x ANC82 Easy-Open, Padded Case
- 6x AA Alkaline Batteries
- 1x Operator's Manual
Specifications
| Refrigerant Support | 70+ refrigerants |
| Compatibility | A2L Compatible |
| Vacuum Port | 3/8" |
| Data Logging | Up to 168 hrs across 9 jobs |
| Languages | 12 |
| Ingress Protection | IP55 |
| Max Manifold Pressure | 870 psig |
| Vacuum Range | 50-9999 microns |
| Display | 5" LCD |
| Battery | 6x AA, 405 hr life |
| Wireless Range | 1000 ft |
| Weight | 4.6 lbs |
Details
Overview
The Fieldpiece SM482V SMAN® Wireless Refrigerant Manifold supports over 70 refrigerants, is A2L compatible, and features an integrated vacuum gauge with a 3/8" vacuum port and block for fast evacuations. It logs hours of data, runs temperature-compensated nitrogen pressure tests, displays in 12 languages, and serves as a central data hub for Job Link® wireless tools. It's dust and water resistant (IP55).
Features
- Supports over 70 refrigerants, A2L compatible
- Integrated vacuum gauge, 3/8" vacuum port and block
- Logs up to 168 continuous hours across 9 stored jobs
- Runs temperature-compensated nitrogen pressure test
- Displays in 12 languages
- Central data hub for Job Link® wireless tools, connects to Job Link System App
- Dust and water resistant (IP55)
What's Included
- 1x SM482V 4-Port Manifold
- 2x TC24 Wired Type-K Pipe Clamp Thermocouple
- 1x ATA1 Type-K Bead Thermocouple with Clip
- 1x ANC82 Easy-Open, Padded Case
- 6x AA Alkaline Batteries
- 1x Operator's Manual
